Published product families
Cinch liner hanger tools
These are the detailed public tool pages currently published in the Saddle Completions Cinch Liner Hanger product line.
Cinch Liner Hanger
The Saddle Completions Cinch Liner Hanger is a premium, high slip contact area, hydraulically set anchoring system for the most critical wells.
- +Bi-directional Anti-preset feature
- +Solid upper seal bore is solidly attached to packer mandrel - no floating O-ring design Hydraulic Release Running Tool w/ Rotational Capability
- +Upper seal bore allows for latch in sealing for frac, accommodating all ball sizes dropped down tubing

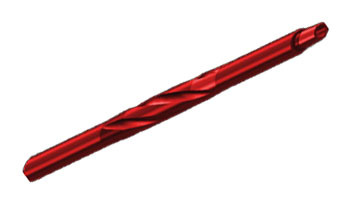

Spur In-Line Reamer
Compression ratchet in. Right hand rotation to release.
- +Compression ratchet in
- +Right hand rotation to release

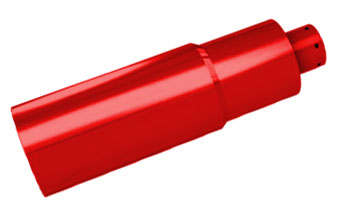

Hydraulic Landing Collar
The Saddle Completions Hydraulic Landing Collar is run in conjunction with the Cinch Liner Hanger product line to hydraulically set the liner hanger prior to the cement job.
View Tool Details

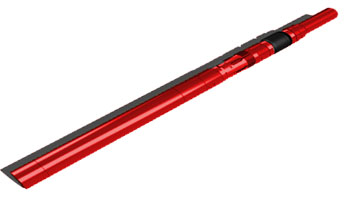

Cinch Rotational Liner Top Packer
The Saddle Completions Cinch Liner Top Packer is a high-performance liner top isolation tool using a floating PBR with an ECNER high-pressure packing element.
- +Anti-preset feature
- +Hydraulic Release Running Tool w/Rotational Capability
- +Secondary Left Hand Mechanical Release

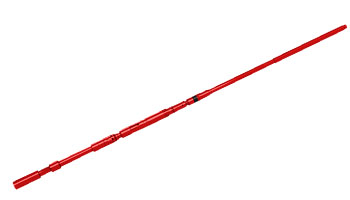

Torque Lock Hydraulic Running Tool
The Cinch Torque Lock Hydraulic Release Running Tool/Setting Tool is used to run and set the Cinch Liner Hanger/Liner Top Packer system.
- +High Torque Extension Mandrel
- +Collet Stomp Tool
- +Torque Lock Running Tool

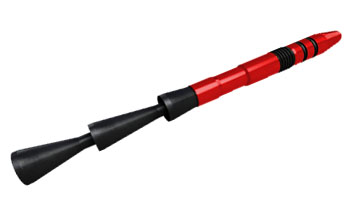

Drill Pipe Wiper Dart
The Saddle Completions Wiper Dart wipes the work string after the cement is pumped and seals into the Liner Wiper Plug.
- +Easily drilled out
- +Anti-rotation when drilling out
- +ed into place, holds differential pressure in both directions

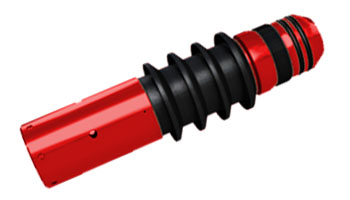

Liner Wiper Plug
The Saddle Completions Liner Wiper Plug is shear-pinned to the bottom of the running tool and provides a seal and seal bore for the Wiper Dart.
- +Easily drilled out

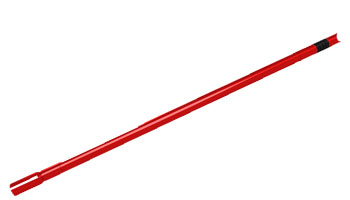

Cinch Latch Seal Assembly
The Latch Seal Assembly engages the top seal bore of the liner hanger packer, isolates the annulus from pressures, and provides a positive connection to the liner top.
- +Compression ratchet in
- +Right hand rotation to release
